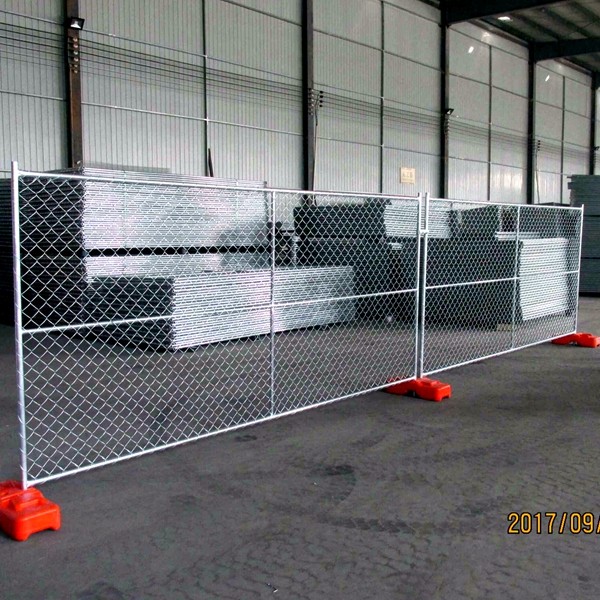

6' and 12' Temporary Construction Site

Temporary Chain Link Fence Galvanized

Panel Specification

Panel Size

6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft

Frame

1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.

Chain Link Mesh Wire

9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

Chain Link Mesh Size

2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.

Brace

Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

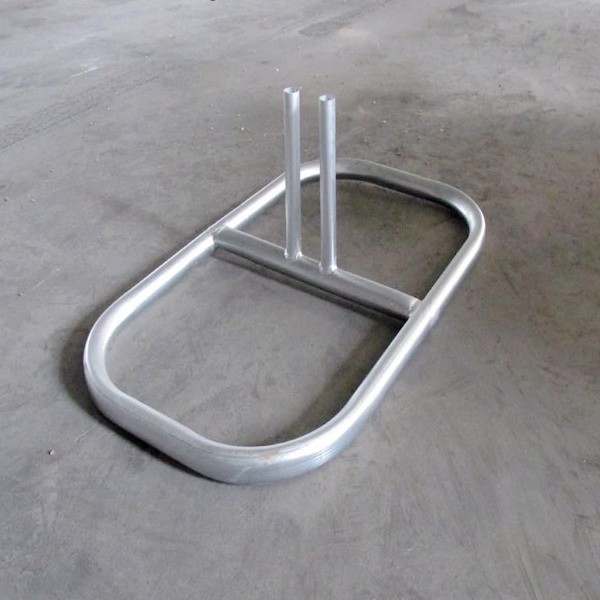

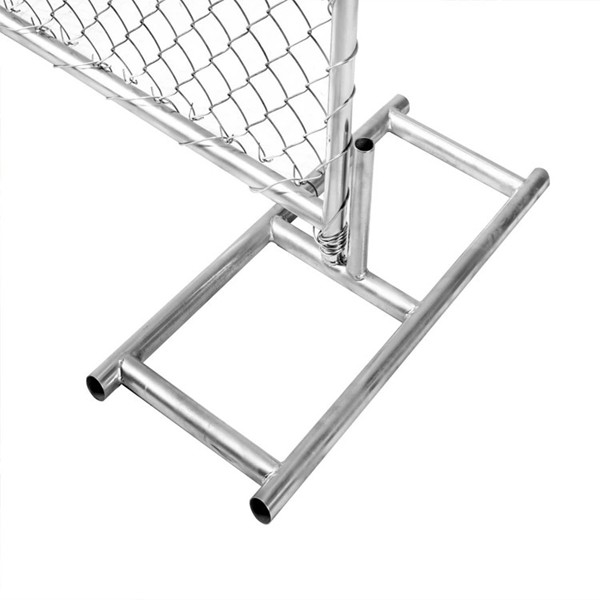

Steel Feet Specification

750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height

762mm x460mm x203mm, (32mm) O.D. tube base

Clamp Specification

Specially moulded 4.0mm wall thickness for additional

strength,80mm,90mm,100mm hole spacing
