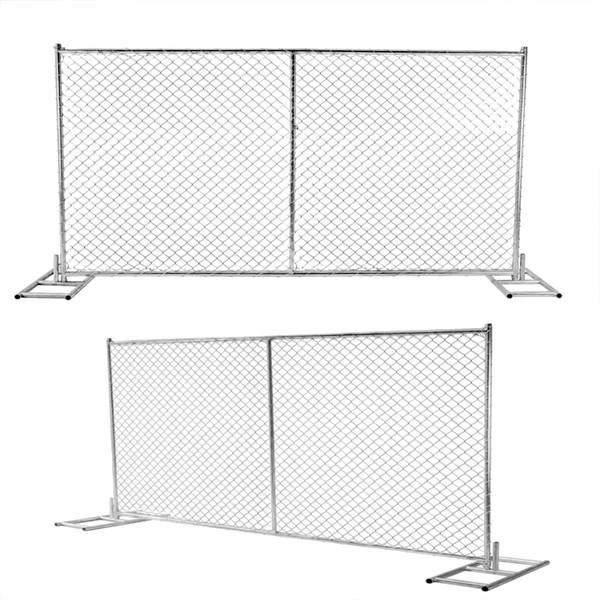

Chain Link Temporary Fence

Chain link fence is also named of diamond wire mesh. Woven diamond pattern provides strong, durable and flexible construction. The surface could be Galvanized or PVC coated

Temporary Chain Link Fence Galvanized


Panel Specification


Panel Size

6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft

Frame

1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.

Chain Link Mesh Wire

9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

Chain Link Mesh Size

2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.

Brace

Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

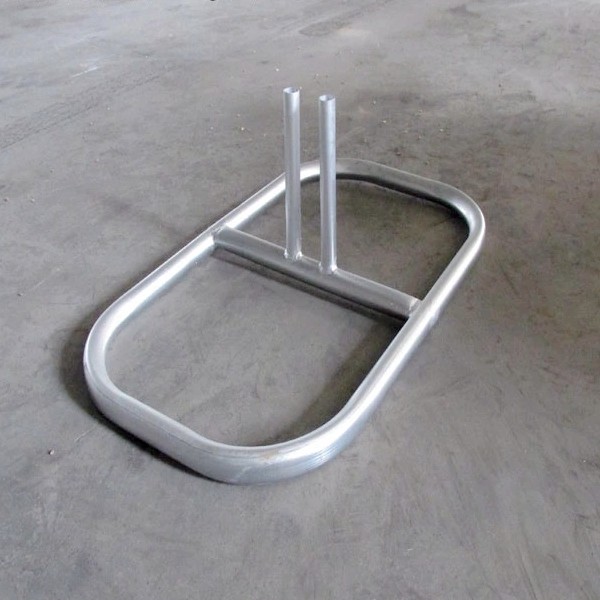

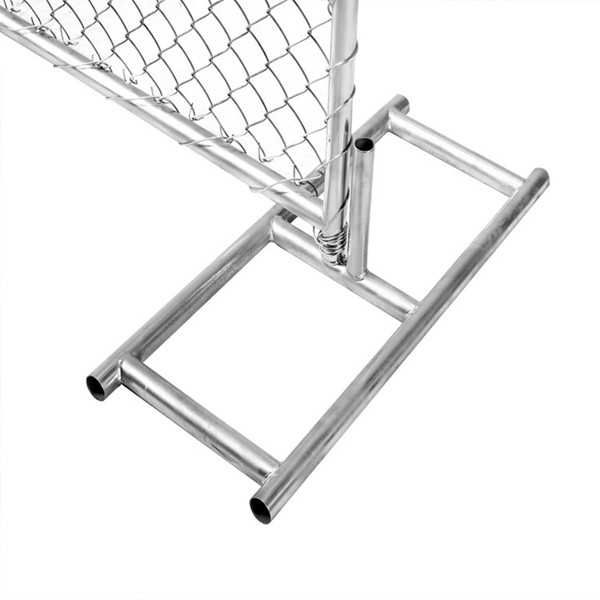

Steel Feet Specification

750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height

762mm x460mm x203mm, (32mm) O.D. tube base

Clamp Specification

Specially moulded 4.0mm wall thickness for additional

strength,80mm,90mm,100mm hole spacing
